Problems related to inadequate floor joist bracing can show up all over the house, including the following:
If your home has sagging floor joists and girders, you're dealing with a problem that manifests itself throughout the entire building. A problem such as this can be caused by many possible factors, but are usually the result of three common issues:
Inadequate Supports: The support system under your home has too few support posts to hold up the structure.
Weakened Floor Joists & Girders: Moisture, rot, termites, wood-boring insects, or other destructive forces have damaged your structural wood.
Support Settlement: Weak supporting soils underneath the crawl space supports have caused the crawl space supports to sink into the ground.
Halco can help solve sagging floors with the help of our crawl space experts. We offer free estimates throughout Ithaca, Rochester, Syracuse - schedule yours today!
If Mother Nature is the cause of your damage, there can be many possible forces hard at work on your crawl space's structural wood. Determining which one you're dealing with can be difficult to do!
Sometimes, a wood surface can be virtually covered in mold, but will still show little evident structural damage. In other cases, the wood may appear to be strong and untouched, while subterranean termites have hollowed the wood out from the inside.
Before you can consider a permanent repair for your crawl space, you will need to address the moisture and humidity that feeds mold, rot, pests, and other unwanted forces in your crawl space. The key to this is to keep your crawl space dry by installing a crawl space vapor barrier system and by running a powerful crawl space dehumidifier system.
Also called "soft rot", this fungi is known to break wet wood down into cellulose, which will significantly weaken and decompose the material.
When choosing between replacing and reinforcing joists that have been damaged, look carefully at the color of the wood.
Advanced damage will show up as darkening and shrinking of the wood. It will have a soggy, spongy appearance, and will show signs of prolonged moisture exposure.
Often, replacement of this wood will not be necessary. Instead, installing a sister beam and sturdy joist supports may be more than enough to address all present damage, and restore your structure to a stable condition.

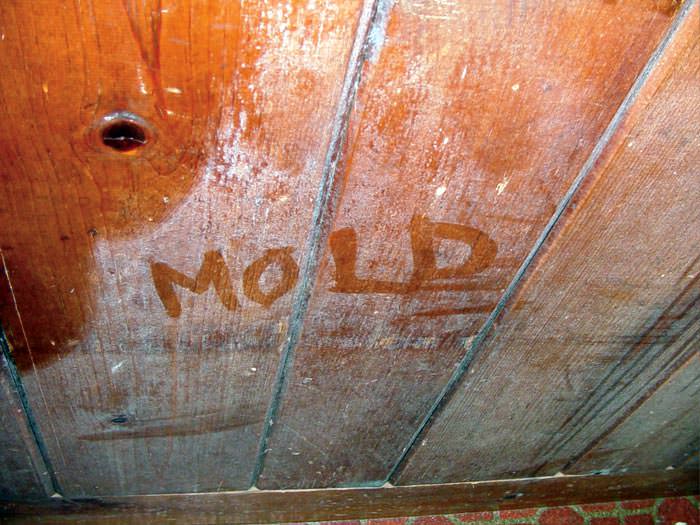

If you see mold that is white and "fuzzy" growing on your wood, there's a good chance that it's surface-level mold only.
This type of fungi quickly grows all over wood surfaces in a humid environment, alarming homeowners but not usually amounting to significant damage. These fungi are only able to consume the sugars and starches present in the wood, and not the polymers in wood fibers that provide structural strength.
Appropriate protective gear and an EPA-approved cleaning agent can provide a good short-term solution for cosmetically damaging fungi species (some molds are harmful and/or toxic to inhale or touch).
Given warmth, moisture, and food, mold will always return. Addressing the source of moisture is a much better route to the permanent solution you're seeking.

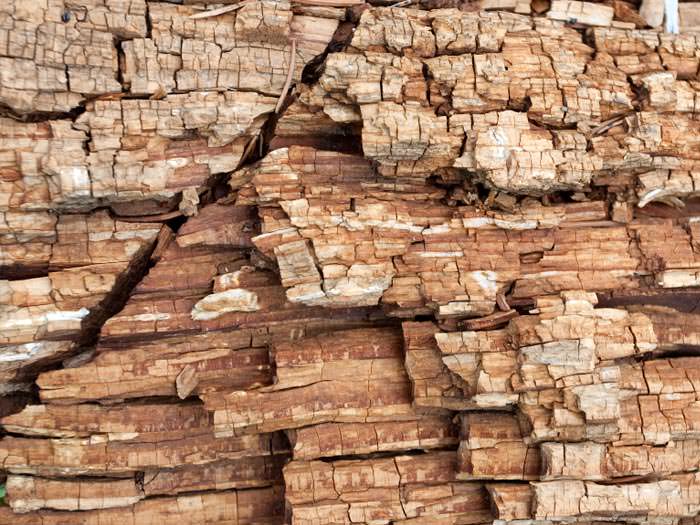

Also known as "brown rot", this fungi will reduce the wood it feeds on into small, rectangular pieces, leaving a "red dust" of spores behind as it spreads.
While not quite as widespread as other forms of mold damage, dry rot results in severe structural damage to wood. According to a study originally published in the Official Journal of the International Biodeterioration and Biodegradation Society, a 1% decrease of the weight of wood can result in a 75% loss in the wood's toughness, causing floor joists and girders to begin to crumble apart in a very short period of time.
Don't be mislead by the name "dry rot" -- it does need significant moisture (a minimum of 28-30% content within the wood).
Dry rot damage can be treated with fungicides (such as boric acid) or other mold treatments to eliminate problems. However, the best way to prevent dry rot and related fungi is to create a dry space.
Wood that's been damaged by termites tends to be hollowed out along the grain, and may look completely undamaged. Inside, you can find ragged-looking "galleries" (tunnels in the wood) that are lined with dried mud, waste, and soil.
Other signs mud-lined "tubes" in visible areas around wood, and the sound made by knocking on termite-damaged wood: which produces a hollow sound. Damage in plaster and drywall may appear as tiny, dirt-lined holes.
Each year, roughly one in 30 homes are infested by termites. Without annual pest inspections, infestations may continue for 8 years or more -- and can mean extensive damage to girders and joists.

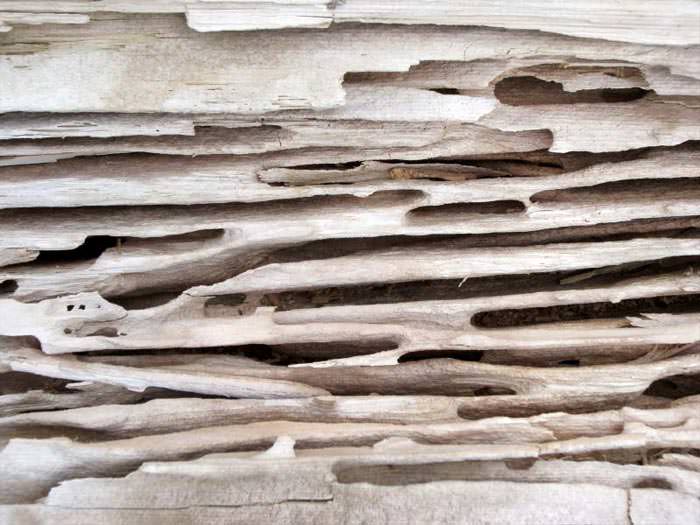

Similar to termites, carpenter ants damage wood by hollowing it out from the inside. Unlike their counterparts, however, they do not eat wood -- only build their nest inside it. As a result, damage done to wood by carpenter ants is generally far less extensive.
Carpenter ants can be distinguished from termites by their pinched-in abdomen, jointed antennae, and forewings that are longer than their hind wings.
Additionally, carpenter ant tunnels are smooth in appearance, where termite tunnels are rough. Carpenter ants will also leave their nest to forage, and to pile "frass" (sawdust, insect parts, and pupil casings) in locations away from the nest.
Both carpenter ants and termites are moisture-loving creates, and are particularly attracted to moldy, rot-damaged wood.

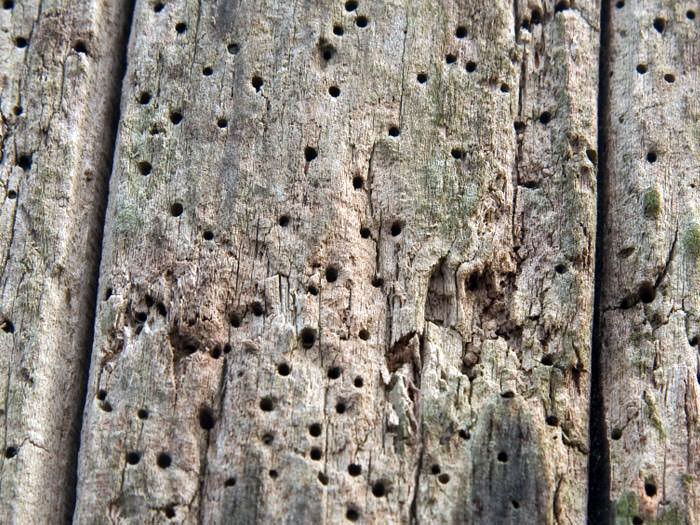

The name "powderpost beetle" is a broad term used for several species of wood-destroying beetles that like to infest untreated wood that's been exposed to humid, damp conditions.
Damage caused by these critters is the cause of more confusion than any other structure-infesting pest -- an expert inspection is the best way to identify it.
Powerpost beetle larvae feed on wood cellulose, and will severely damage floor joists, girders, and other structural wood in 1-5 years. Wood they feed upon is reduced to a fine powder, which is deposited in tunnels below the surface of the wood.
Once fully developed, emerging adults will leave tiny, round holes in the wood -- about 1/8" in diameter. They will quickly mate, laying new eggs on or below the wood's surface.
Crawl space joist supports are steel, adjustable support posts that are installed to repair sagging floors.
These reinforcing joists install quickly in crawl spaces -- with a complete installation taking about a day -- and provide a permanent solution.
Our SmartJack® Support System is designed with corrosion-resistant galvanized steel, ensuring that it will be strong and adjustable for decades to come. A unique base of engineered fill prevents sinking support posts when soils below are weak, maximizing effectiveness.
More about our Crawl Space Jacks
Compared to other sources of structural damage (frost heave, foundation settlement, bowing foundation walls, etc.) it's relatively easy and inexpensive to reinforce joists and girders in a structurally damaged crawl space.
Girder and joist jacks (also known as "steel lally columns") can be installed at key locations along the structure. Once in place, the floor can be "jacked up" in an attempt to lift the floor back to a level position. If a contractor finds a joist is severely damaged, a sister beam can be installed alongside the normal one for extra strength.

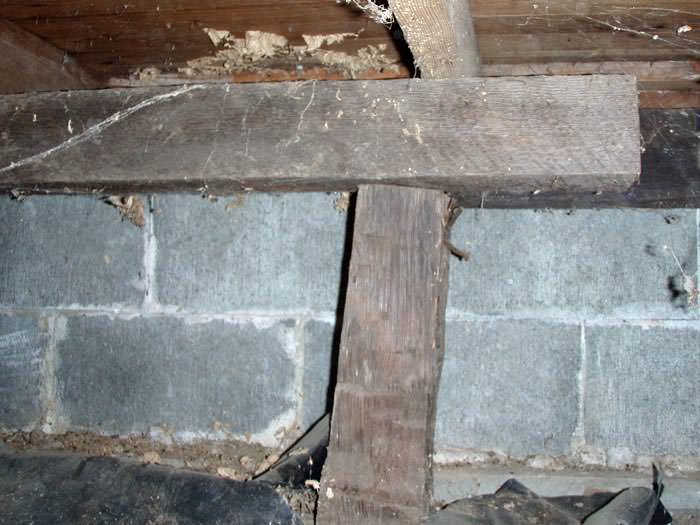

At Halco, we've seen just about everything! Below are just a few of the sagging floor joists the experts in our network have encountered:
(Click to see larger view.)

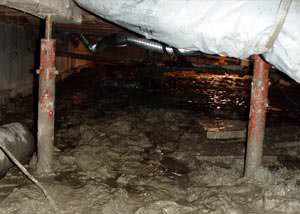

Light-duty joist braces, such as are found in big box stores throughout New York, should not be as permanent supports.
These joist braces are made out of steel that can rust and corrode, making them difficult or impossible to readjust if the support post sinks down in the soil.
No matter how strong your floor joist supports are, they can only bear as much weight as the soils underneath them. Put simply, if the supports are sinking, your floor is going to sink with them.
To address this, our contractors take advantage of something called the "bulb of influence".
Before we install your support posts, we excavate a 2' cube hole, filling it in with compressed, crushed stone. Then we place a concrete base on top of the center of this cube and position the jack post above that.
This cube of compressed, crushed stone disperses the weight pressing down into the soil outwards, dispersing it to approximately 10% of the pressure present at the bearing surface.
This means that even if the soils under the jack posts aren't strong enough to support great weights, your system will still be more than sufficient to support the structure above.
There are many different methods of crawl space repair that contractors are using today, and some are much better than others, but all of them work at least some of the time.
Of course, if these repair methods never worked, then they would not be used anymore. However, at Halco, our reputation and written warranty depends on using solutions that will be permanent -- and will work all of the time. The chart below lays out the facts:
Girder & Floor Joist Support Solutions
Provides a solution for floor joist bracing that is spaced too far apart to provide proper support
Can be combined with a moisture barrier system to repair sagging floor joists and girders that are damaged by rot and mold
Are appropriate for installation in areas where the soils cannot support heavy loads, and would normally cause joist supports to sink
Can be installed without "overlifting" the foundation, which is known to cause additional structural damage
Adjustments can be easily and reliably made, should the joist brace settle into the soil
Installs in the home within a day
The girder jacks and joist jacks provide a high load-bearing capacity for structural support
At Halco, our experts have the experience, training, and warranted products that you're looking for! With a fast, uninvasive installation, we can provide a lasting solution for your home that will restore your structure and avoid further, potentially expensive, damage.
It costs you nothing to meet with one of our specialists for a professional inspection and written cost quote! To schedule a crawl space repair quote, contact us by phone or e-mail today!
We proudly serve the New York area, including Rochester, Ithaca, Syracuse, Webster, Lansing, Fairport, Auburn, Cortland, Canandaigua, Pittsford, and many surrounding areas.

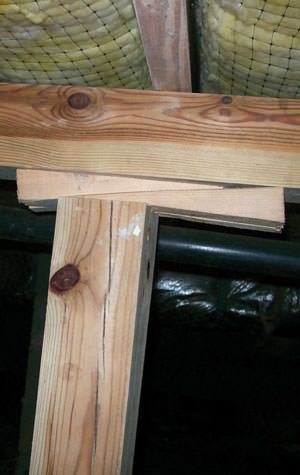

When additional shimming is added to a crawl space support, the floor must first be mechanically lifted to above its original position with temporary jacks. This overlifting can potentially cause structural damage to the home.
Next, pieces of metal or wedges of wood are inserted into the gaps at the top of the support columns. Then, the structure is lowered on top of the shims, and the jacks are removed.
If your crawl space is sagging because they're rotting, it will continue to rot after the repairs are made.
If too few girder and joist supports are the cause of the sinking, the floor will continue to be poorly supported, and will continue to sink. If the columns have sunk because the soil was too weak to support the weight, they will probably continue to sink.

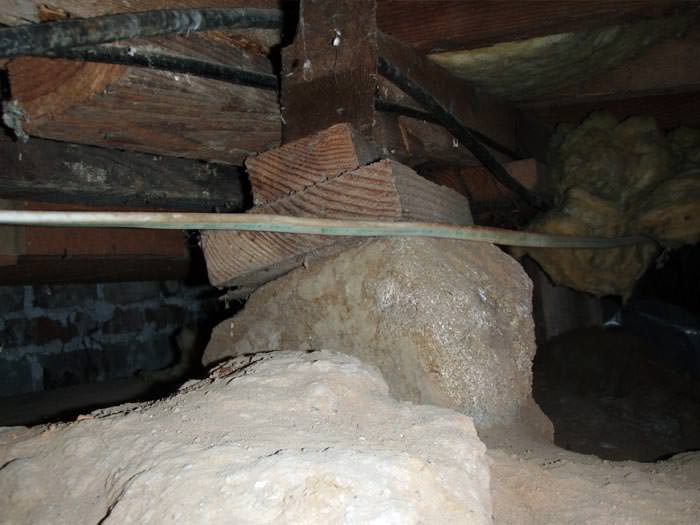

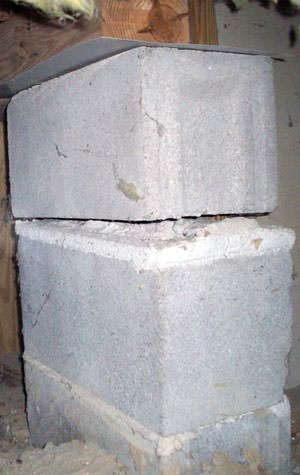

Sometimes, a contractor will reinforce joists in a crawl space by adding additional concrete columns. These concrete blocks will be custom-made for the crawl space, and will need several days for the grouted-together block mortar to cure.
Next, the crawl space will be jacked upwards using temporary jacks, and the concrete blocks will be put in place. Shimming will be used to fill the gaps at the top of the column. During the shimming process, additional structural damage may occur.
If you have sagging floor joists in a crawl space due to rot, it will continue to sag after the repairs are made. Replacement beams will rot as well, unless the moisture issue in the crawl space is addressed. If the columns have sunk because the soil was too weak to support the weight, they may continue to sink into the soil.

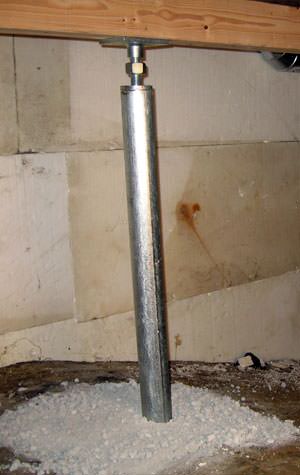

Light-Duty Jack Posts are adjustable steel posts that are used to add support in a crawl space, and are typically installed on top of a concrete block on top of the soil.
During installation, the floor joist bracing post is extended until it reaches and supports the sagging girder. These posts typically have a low load-bearing capacity (15,000-18,000 pounds).
Over time, they will begin to rust and corrode, weakening the post and making it difficult or impossible to adjust.
If your crawl space is sagging due to rot, it will continue to sag after the repairs are made. If replacement beams are installed that are not rotting, they will eventually rot as well. If the columns were sinking because the soil was too weak to support the transferred weight, they may continue to sink.

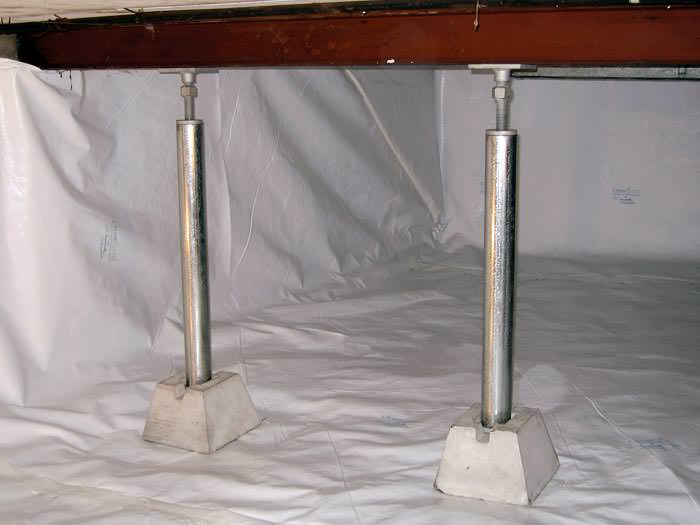

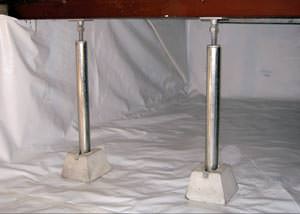

The SmartJack® is an adjustable galvanized steel (corrosion-resistant) girder and joist jack that is used to support a crawl space. It sits on top of a pre-cast concrete block. Underneath the block, a 2' by 2' cube of soil is removed and replaced with an engineered stone fill.
The jack post is extended to the girder or joist, halting movement. The SmartJack® is adjusted to attempt to lift the floor back to its original position -- a process that will not cause structural damage.
If sagging is occurring due to rot, new sister beams will be installed. The SmartJack® will not sink due to poor supporting soils due to the base of engineered fill, which disperses the weight to 10% of what it was.
